canvas倒计时效果

最近开始学习canvas,实现了慕课网上的一个倒计时例子。

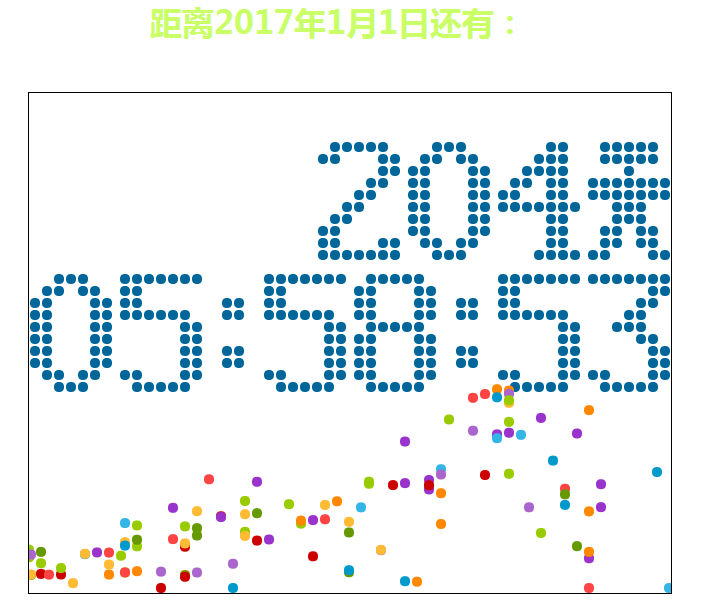

最终效果


最后的效果是不是很绚丽呢

数字表示方法

用二维矩阵表示0~9,:,“天”这些后面需要用到的字符

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
digit =
[
[
[0, 0, 1, 1, 1, 0, 0],
[0, 1, 1, 0, 1, 1, 0],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[0, 1, 1, 0, 1, 1, 0],
[0, 0, 1, 1, 1, 0, 0]
],//0
[
[0, 0, 0, 1, 1, 0, 0],
[0, 1, 1, 1, 1, 0, 0],
[0, 0, 0, 1, 1, 0, 0],
[0, 0, 0, 1, 1, 0, 0],
[0, 0, 0, 1, 1, 0, 0],
[0, 0, 0, 1, 1, 0, 0],
[0, 0, 0, 1, 1, 0, 0],
[0, 0, 0, 1, 1, 0, 0],
[0, 0, 0, 1, 1, 0, 0],
[1, 1, 1, 1, 1, 1, 1]
],//1
[
[0, 1, 1, 1, 1, 1, 0],
[1, 1, 0, 0, 0, 1, 1],
[0, 0, 0, 0, 0, 1, 1],
[0, 0, 0, 0, 1, 1, 0],
[0, 0, 0, 1, 1, 0, 0],
[0, 0, 1, 1, 0, 0, 0],
[0, 1, 1, 0, 0, 0, 0],
[1, 1, 0, 0, 0, 0, 0],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 1, 1, 1, 1, 1]
],//2
[
[1, 1, 1, 1, 1, 1, 1],
[0, 0, 0, 0, 0, 1, 1],
[0, 0, 0, 0, 1, 1, 0],
[0, 0, 0, 1, 1, 0, 0],
[0, 0, 1, 1, 1, 0, 0],
[0, 0, 0, 0, 1, 1, 0],
[0, 0, 0, 0, 0, 1, 1],
[0, 0, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[0, 1, 1, 1, 1, 1, 0]
],//3
[
[0, 0, 0, 0, 1, 1, 0],
[0, 0, 0, 1, 1, 1, 0],
[0, 0, 1, 1, 1, 1, 0],
[0, 1, 1, 0, 1, 1, 0],
[1, 1, 0, 0, 1, 1, 0],
[1, 1, 1, 1, 1, 1, 1],
[0, 0, 0, 0, 1, 1, 0],
[0, 0, 0, 0, 1, 1, 0],
[0, 0, 0, 0, 1, 1, 0],
[0, 0, 0, 1, 1, 1, 1]
],//4
[
[1, 1, 1, 1, 1, 1, 1],
[1, 1, 0, 0, 0, 0, 0],
[1, 1, 0, 0, 0, 0, 0],
[1, 1, 1, 1, 1, 1, 0],
[0, 0, 0, 0, 0, 1, 1],
[0, 0, 0, 0, 0, 1, 1],
[0, 0, 0, 0, 0, 1, 1],
[0, 0, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[0, 1, 1, 1, 1, 1, 0]
],//5
[
[0, 0, 0, 0, 1, 1, 0],
[0, 0, 1, 1, 0, 0, 0],
[0, 1, 1, 0, 0, 0, 0],
[1, 1, 0, 0, 0, 0, 0],
[1, 1, 0, 1, 1, 1, 0],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[0, 1, 1, 1, 1, 1, 0]
],//6
[
[1, 1, 1, 1, 1, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[0, 0, 0, 0, 1, 1, 0],
[0, 0, 0, 0, 1, 1, 0],
[0, 0, 0, 1, 1, 0, 0],
[0, 0, 0, 1, 1, 0, 0],
[0, 0, 1, 1, 0, 0, 0],
[0, 0, 1, 1, 0, 0, 0],
[0, 0, 1, 1, 0, 0, 0],
[0, 0, 1, 1, 0, 0, 0]
],//7
[
[0, 1, 1, 1, 1, 1, 0],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[0, 1, 1, 1, 1, 1, 0],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[0, 1, 1, 1, 1, 1, 0]
],//8
[
[0, 1, 1, 1, 1, 1, 0],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[1, 1, 0, 0, 0, 1, 1],
[0, 1, 1, 1, 0, 1, 1],
[0, 0, 0, 0, 0, 1, 1],
[0, 0, 0, 0, 0, 1, 1],
[0, 0, 0, 0, 1, 1, 0],
[0, 0, 0, 1, 1, 0, 0],
[0, 1, 1, 0, 0, 0, 0]
],//9
[
[0, 0, 0, 0],
[0, 0, 0, 0],
[0, 1, 1, 0],
[0, 1, 1, 0],
[0, 0, 0, 0],
[0, 0, 0, 0],
[0, 1, 1, 0],
[0, 1, 1, 0],
[0, 0, 0, 0],
[0, 0, 0, 0]
],//:
[
[0, 1, 1, 1, 1, 1, 0],
[0, 1, 1, 1, 1, 1, 0],
[0, 0, 0, 1, 0, 0, 0],
[1, 1, 1, 1, 1, 1, 1],
[1, 1, 1, 1, 1, 1, 1],
[0, 0, 1, 1, 1, 0, 0],
[0, 0, 1, 1, 1, 0, 0],
[0, 1, 1, 0, 1, 1, 0],
[0, 1, 1, 0, 1, 1, 0],
[1, 1, 0, 0, 0, 1, 1]
]//天
];

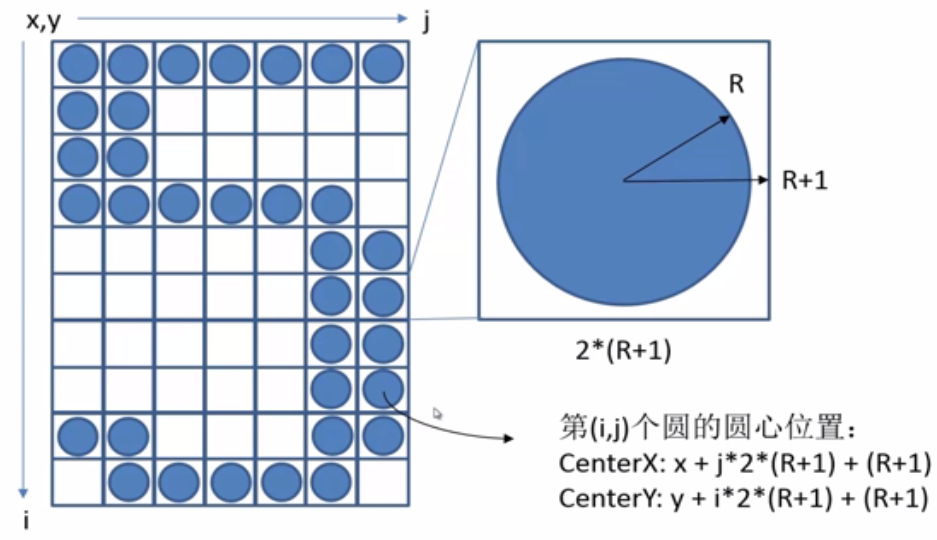

一个数字的绘制原理(详见慕课网):

模拟一个小球的运动

例子中,当数字发生变化时,会出现很多彩色的运动的小球,这是怎么实现的呢,先从模拟一个小球的运动开始:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
var WINDOW_WIDTH = 1024;
var WINDOW_HEIGHT = 400;
var RADIUS = 8;
var MARGIN_TOP = 60;
var MARGIN_LEFT = 30;

var curShowTimeSeconds = 0

var balls = [];
const colors = ["#33B5E5", "#0099CC", "#AA66CC", "#9933CC", "#99CC00", "#669900", "#FFBB33", "#FF8800", "#FF4444", "#CC0000"]

// x,y表示小球的坐标
// g表示重力加速度
// vx,vy表示水平和垂直方向上的速度
// color 表示小球的颜色
var ball = {x: 1000, y: 50, g: 2, vx: -4, vy: -10, color: "blue"};

window.onload = function () {

var canvas = document.getElementById('canvas');
var context = canvas.getContext("2d");

canvas.width = WINDOW_WIDTH;
canvas.height = WINDOW_HEIGHT;

curShowTimeSeconds = getCurrentShowTimeSeconds()
setInterval(
function () {
render(context);
updateBalls();
}
,
50
);
}
function getCurrentShowTimeSeconds() {
var curTime = new Date();
var ret = endTime.getTime() - curTime.getTime();
ret = Math.round(ret / 1000)
return ret >= 0 ret : 0;
}
function updateBalls() {
ball.vy += ball.g; // 速度变化
ball.x += ball.vx; // 水平方向的位置变化
ball.y += ball.vy; // 垂直方向的位置变化
if (ball.y >= WINDOW_HEIGHT - RADIUS) {
// 反弹
ball.y = WINDOW_HEIGHT - RADIUS;
// 能量损耗
ball.vy = -ball.vy*0.75;
}
}
// 绘制小球
function render(cxt) {
cxt.clearRect(0, 0, WINDOW_WIDTH, WINDOW_HEIGHT);
cxt.fillStyle = ball.color;
cxt.beginPath();
cxt.arc(ball.x, ball.y, RADIUS, 0, 2 * Math.PI, true);
cxt.closePath();
cxt.fill();
}

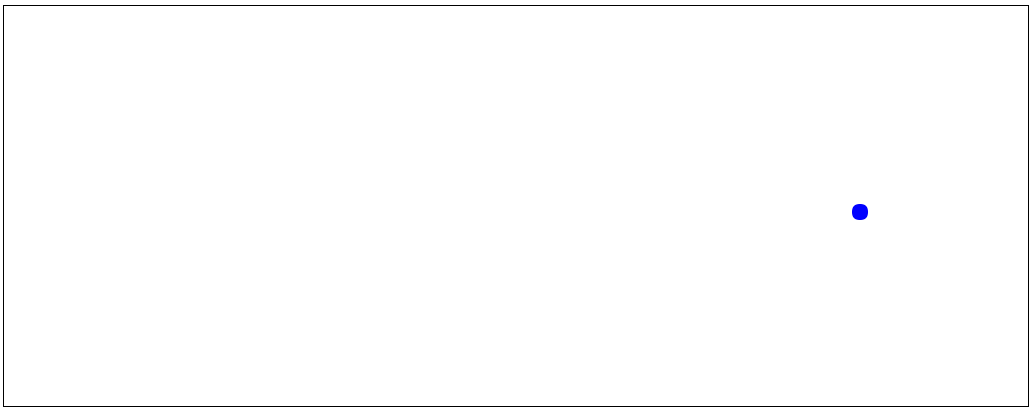

小球会先做一个斜抛运动,然后碰到底部后反弹起来,如此反复,一直到垂直速度为0.

完整动画

完整例子代码如下图所示:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
var WINDOW_WIDTH = 642;
var WINDOW_HEIGHT = 500;
var RADIUS = 5;
var MARGIN_TOP = 180;
var MARGIN_LEFT = 0;
const endTime = new Date(2016,11,31,23,59,59);
var curShowTimeSeconds = 0;

var balls = [];
const colors = ["#33B5E5","#0099CC","#AA66CC","#9933CC","#99CC00","#669900","#FFBB33","#FF8800","#FF4444","#CC0000"]

window.onload = function() {
var canvas = document.getElementById('canvas');
var context =canvas.getContext("2d");
canvas.width = WINDOW_WIDTH;
canvas.height = WINDOW_HEIGHT;
curShowTimeSeconds = getCurrentShowTimeSeconds();

// 不停的更新和重绘,这里时间必须要小于1秒,否则不准确
setInterval(function() {
render(context);
update();
},50);
}
/**
* 判断秒数是否发生了变化来决定是否更新时间
*/
function update() {
var nextShowTimeSeconds = getCurrentShowTimeSeconds();

var nextDays = parseInt(nextShowTimeSeconds/(24*3600));
var nextHours = parseInt((nextShowTimeSeconds-nextDays*24*3600)/3600);
var nextMinutes = parseInt((nextShowTimeSeconds-nextDays*24*3600-nextHours*3600)/60);
var nextSeconds = nextShowTimeSeconds % 60;

var curDays = parseInt(curShowTimeSeconds/(24*3600));
var curHours = parseInt((curShowTimeSeconds-curDays*24*3600)/3600);
var curMinutes = parseInt((curShowTimeSeconds-curDays*24*3600-curHours*3600)/60);
var curSeconds = curShowTimeSeconds % 60;


var nextSeconds = nextShowTimeSeconds % 60;
var curSeconds = curShowTimeSeconds % 60;
if (nextSeconds != curSeconds) {
var sNextDays = nextDays.toString();
sNextDays = sNextDays.length < 3 '0' + sNextDays : sNextDays;
var sCurDays = curDays.toString();
sCurDays = sCurDays.length < 3 '0' + sCurDays : sCurDays;

// 天-百位
if ( sNextDays[0] != sCurDays[0]) {
addBalls( MARGIN_LEFT + 93*(RADIUS+1) - 45 * (RADIUS+1), MARGIN_TOP-22*(RADIUS+1) , sCurDays[0] );
}
// 天-十位
if ( sNextDays[1] != sCurDays[1]) {
addBalls( MARGIN_LEFT + 93*(RADIUS+1) - 30 * (RADIUS+1), MARGIN_TOP-22*(RADIUS+1) , sCurDays[1] );
}
// 天-个位
if ( sNextDays[2] != sCurDays[2]) {
addBalls( MARGIN_LEFT + 93*(RADIUS+1) - 15 * (RADIUS+1), MARGIN_TOP-22*(RADIUS+1) , sCurDays[2] );
}
// 时-十位
if( parseInt(curHours/10) != parseInt(nextHours/10) ){
addBalls( MARGIN_LEFT + 0 , MARGIN_TOP , parseInt(curHours/10) );
}
// 时-个位
if( parseInt(curHours%10) != parseInt(nextHours%10) ){
addBalls( MARGIN_LEFT + 15*(RADIUS+1) , MARGIN_TOP , parseInt(curHours/10) );
}
// 分-十位
if( parseInt(curMinutes/10) != parseInt(nextMinutes/10) ){
addBalls( MARGIN_LEFT + 39*(RADIUS+1) , MARGIN_TOP , parseInt(curMinutes/10) );
}
// 分-个位
if( parseInt(curMinutes%10) != parseInt(nextMinutes%10) ){
addBalls( MARGIN_LEFT + 54*(RADIUS+1) , MARGIN_TOP , parseInt(curMinutes%10) );
}
// 秒-十位
if( parseInt(curSeconds/10) != parseInt(nextSeconds/10) ){
addBalls( MARGIN_LEFT + 78*(RADIUS+1) , MARGIN_TOP , parseInt(curSeconds/10) );
}
// 秒-个位
if( parseInt(curSeconds%10) != parseInt(nextSeconds%10) ){
addBalls( MARGIN_LEFT + 93*(RADIUS+1) , MARGIN_TOP , parseInt(nextSeconds%10) );
}
curShowTimeSeconds = nextShowTimeSeconds;
}
updateBalls();
}
/**
* 更新小球的运动轨迹
*/
function updateBalls(){

for( var i = 0 ; i < balls.length ; i ++ ){

balls[i].x += balls[i].vx;
balls[i].y += balls[i].vy;
balls[i].vy += balls[i].g;

// 反弹
if( balls[i].y >= WINDOW_HEIGHT-RADIUS ){
balls[i].y = WINDOW_HEIGHT-RADIUS;
// 能量损耗
balls[i].vy = - balls[i].vy*0.75;
}
}
}
/**
* 给变化的数字增加彩色小球
* @param x 数字左上角x
* @param y 数字左上角y
* @param num 数字
*/
function addBalls(x, y, num) {
for( var i = 0 ; i < digit[num].length ; i ++ ) {
for( var j = 0 ; j < digit[num][i].length ; j ++ ) {
if( digit[num][i][j] == 1 ){
var aBall = {
x:x+j*2*(RADIUS+1)+(RADIUS+1),
y:y+i*2*(RADIUS+1)+(RADIUS+1),
g:1.5+Math.random(),// 随机重力加速度
vx:Math.pow( -1 , Math.ceil( Math.random()*1000 ) ) * 4,//随机水平速度
vy:-5,
color: colors[ Math.floor( Math.random()*colors.length ) ] // 随机颜色
}

balls.push( aBall )
}
}
}
}
/**
* 得到当前倒计时的秒数
* @returns {number}
*/
function getCurrentShowTimeSeconds() {
var curTime = new Date();
var ret = endTime.getTime() - curTime.getTime();
ret = Math.round(ret/1000);
return ret>=0 ret:0;
}
/**
* 计算天、时、分、秒
* @param cxt
*/
function render(cxt) {

// 清空矩形空间
cxt.clearRect(0,0,WINDOW_WIDTH,WINDOW_HEIGHT);
// 计算天、时、分、秒
var days = parseInt(curShowTimeSeconds/(24*3600));
var hours = parseInt((curShowTimeSeconds-days*24*3600)/3600);
var minutes = parseInt((curShowTimeSeconds-days*24*3600-hours*3600)/60);
var seconds = curShowTimeSeconds % 60;
// 天
days = days.toString();
days = days.length < 3 '0' + days : days;
for (var i=days.length- 1;i>=0;i--) {
renderDigit(MARGIN_LEFT + 93*(RADIUS+1) - 15 * (days.length-i) * (RADIUS+1), MARGIN_TOP-22*(RADIUS+1), days[i], cxt);
}
renderDigit(MARGIN_LEFT + 93*(RADIUS+1),MARGIN_TOP-22*(RADIUS+1),11,cxt);
// 小时:分:秒
renderDigit(MARGIN_LEFT,MARGIN_TOP,parseInt(hours/10),cxt);
renderDigit(MARGIN_LEFT + 15*(RADIUS+1),MARGIN_TOP,parseInt(hours%10),cxt);
renderDigit(MARGIN_LEFT + 30*(RADIUS+1),MARGIN_TOP,10,cxt);
renderDigit(MARGIN_LEFT + 39*(RADIUS+1),MARGIN_TOP,parseInt(minutes/10),cxt);
renderDigit(MARGIN_LEFT + 54*(RADIUS+1),MARGIN_TOP,parseInt(minutes%10),cxt);
renderDigit(MARGIN_LEFT + 69*(RADIUS+1),MARGIN_TOP,10,cxt);
renderDigit(MARGIN_LEFT + 78*(RADIUS+1),MARGIN_TOP,parseInt(seconds/10),cxt);
renderDigit(MARGIN_LEFT + 93*(RADIUS+1),MARGIN_TOP,parseInt(seconds%10),cxt);

// 画小球
renderBalls(cxt);
}
/**
* 画图
* @param x
* @param y
* @param num
* @param cxt
*/
function renderDigit(x,y,num,cxt) {
cxt.fillStyle = "rgb(0,102,153)";
for(var i=0;i<digit[num].length;i++) {
for(var j=0;j<digit[num].length;j++) {
if (digit[num][i][j] === 1) {
cxt.beginPath();
cxt.arc(x+j*2*(RADIUS+1)+(RADIUS+1),y+i*2*(RADIUS+1)+(RADIUS+1 ),
RADIUS, 0, 2*Math.PI);
cxt.closePath();
cxt.fill();
}
}
}
}

/**
* 画球
* @param cxt
*/
function renderBalls(cxt) {
for( var i = 0 ; i < balls.length ; i ++ ){
cxt.fillStyle=balls[i].color;

cxt.beginPath();
cxt.arc( balls[i].x , balls[i].y , RADIUS , 0 , 2*Math.PI , true );
cxt.closePath();

cxt.fill();
}
}

优化

上面的代码有一个问题,就是随着程序的运行balls数组长度会一直增长,但其实运行到画布之外的小球就可以从数组中删去了,所以我在updateBalls(计算反弹前)加了以下代码,跟课程有点不同(嘿嘿,代码更简洁哦):

1
2
3
4
5
// 删去画布外小球
if (balls[i].x + RADIUS < 0 || balls[i].x - RADIUS > WINDOW_WIDTH) {
balls.splice(i--,1);// 把当前元素删除后,索引要减一 比如[1,2,3]中 删掉2后下一个元素的索引还是1
continue;
}

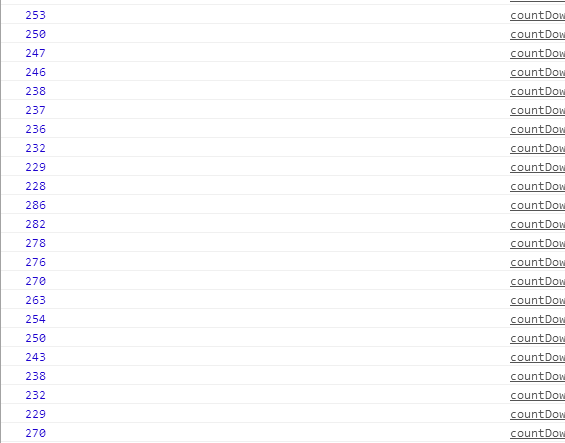

打印数组的长度,其长度不会无限增加
