从零实现 React v18，但 WASM 版 - [5] 实现 Render 流程的 completeWork 阶段

Posted on | In

模仿 big-react，使用 Rust 和 WebAssembly，从零实现 React v18 的核心功能。深入理解 React 源码的同时，还锻炼了 Rust 的技能，简直赢麻了！

代码地址：https://github.com/ParadeTo/big-react-wasm

本文对应 tag：v5

Based on big-react，I am going to implement React v18 core features from scratch using WASM and Rust.

Code Repository：https://github.com/ParadeTo/big-react-wasm

The tag related to this article：v5

上篇文章实现了 Render 流程中的 begin work 阶段，这篇来实现 complete work。

The previous article implemented the “begin work” phase in the Render process, and this article will cover the implementation of the “complete work” phase.

更多关于 Render 流程的内容可以参考 React 技术揭秘 或 React 源码解读之首次渲染流程（含例子）。

For more information about the Render process, you can refer to React 技术揭秘 or React 源码解读之首次渲染流程（含例子）。.

因为是仿写，代码仍然不赘述了，这里可以看到两个版本的对比，下面解释一些特别的地方。

Since this is an imitation, the code will not be repeated. You can see the comparison between the two versions here. Below, we’ll explain some specific details.

  • completeWork

CompleteWork 仍然是定义为一个含有 host_config 属性的 struct：

CompleteWork is still defined as a struct that contains the host_config property:

1
2
3
4
// complete_work.rs
pub struct CompleteWork {
    pub host_config: Rc<dyn HostConfig>,
}

并且它还作为 WorkLoop 的属性，在 WorkLoop 实例初始化时也一并初始化：

And it also serves as a property of WorkLoop, being initialized along with the WorkLoop instance during initialization:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
// work_loop.rs
pub struct WorkLoop {
    work_in_progress: Option<Rc<RefCell<FiberNode>>>,
    complete_work: CompleteWork,
}
impl WorkLoop {
    pub fn new(host_config: Rc<dyn HostConfig>) -> Self {
        Self {
            work_in_progress: None,
            complete_work: CompleteWork::new(host_config),
        }
    }
    ...
}
  • 修改 react-dom 中的 HostConfig 实现 (Modify the implementation of HostConfig in react-dom)

原来的 create_text_instance 和 create_instance 中的返回值分别为 Text 和 Element（虽然最后他们都作为 dyn Any 返回），但是当在 append_initial_child 需要把他们 downcast 回来时就比较麻烦了，因为 child 可以是 Text 或 Element，所以需要尝试两次。所以，为了后续使用方便，这里统一转为 Node 返回：

The original create_text_instance and create_instance functions return Text and Element respectively (although they are ultimately returned as dyn Any). However, it becomes cumbersome when trying to downcast them back in append_initial_child because child can be either Text or Element, requiring two attempts. Therefore, for convenience, they are unified to return Node.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
fn create_text_instance(&self, content: String) -> Rc<dyn Any> {
  ...
  Rc::new(Node::from(document.create_text_node(content.as_str())))
}

fn create_instance(&self, _type: String) -> Rc<dyn Any> {
  ...
  match document.create_element(_type.as_ref()) {
      Ok(element) => {
          Rc::new(Node::from(element))
      }
      Err(_) => todo!(),
  }
}

这样，在 append_initial_child 我们只需要 downcast 为 Node 即可：

This way, in append_initial_child, we only need to downcast it to Node:

1
2
3
4
5
fn append_initial_child(&self, parent: Rc<dyn Any>, child: Rc<dyn Any>) {
  let p = parent.clone().downcast::<Node>().unwrap();
  let c = child.clone().downcast::<Node>().unwrap();
  ...
}
  • 代码中有一些看似多余的 {} 代码块，是为了解决 Rust 中关于所有权的一些限制，因为 Rust 中规定“在同一个作用域下，我们不能同时有活跃的可变借用和不可变借用”。比如下面这个例子就会报 already borrowed: BorrowMutError 的错误：
  • There are some seemingly redundant {} code blocks in the code to address certain ownership restrictions in Rust. This is because Rust enforces the rule that “we cannot have both an active mutable borrow and an active immutable borrow in the same scope.” For example, the following example would result in a already borrowed: BorrowMutError error:
1
2
3
4
5
6
7
8
9
10
use std::cell::RefCell;

fn main() {
    let data = RefCell::new(5);

    let b1 = data.borrow();
    let b2 = data.borrow_mut();

    println!("{}", b1);
}

改成这样就没问题了：

Making the following changes resolves the issue:

1
2
3
4
5
6
7
8
9
10
11
12
use std::cell::RefCell;

fn main() {
    let data = RefCell::new(5);
    {
      let b1 = data.borrow();
    }
    {
      let b2 = data.borrow_mut();
    }
    println!("{}", data.borrow());
}

原因在于现在 b1 和 b2 的借用作用域都被限定在 {} 之中。

The reason is that now the borrowing scope of b1 and b2 is limited to the {} block.

对 React 最新几个版本不太熟悉的人可能会疑惑，怎么 Render 阶段没有生成 Effect List？原因在于 React 为了支持 Suspense，在 v16.14.0 版本中去掉了 Effect List，改为使用 subtreeFlags 来标记子树中是否有副作用，更多信息可以参考这篇文章。

For those who are not familiar with the latest versions of React, they may wonder why the Render phase does not generate an Effect List. The reason is that, in order to support Suspense, React removed the Effect List in version v16.14.0 and replaced it with subtreeFlags to mark whether there are side effects in the subtree. For more information, you can refer to this article.

为了验证 complete work 阶段代码是否正确，我们在 FiberRootNode 的 fmt 方法中增加一些关于 flags 的调式信息：

To validate the correctness of the code in the complete work phase, we add some debugging information about flags in the fmt method of FiberRootNode.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
...
WorkTag::HostRoot => {
    write!(f, "{:?}(subtreeFlags:{:?})", WorkTag::HostRoot, current_ref.subtree_flags);
}
WorkTag::HostComponent => {
    let current_borrowed = current.borrow();
    write!(
        f,
        "{:?}(flags:{:?}, subtreeFlags:{:?})",
        ...
    );
}
WorkTag::HostText => {
    let current_borrowed = current.borrow();

    write!(
        f,
        "{:?}(state_node:{:?}, flags:{:?})",
...

重新构建并安装依赖，运行 hello world 项目：

Rebuild and install the dependencies, then run the hello world project.

1
2
3
4
5
6
7
8
9
10
11
import {createRoot} from 'react-dom'

const comp = (
  <div>
    <p>
      <span>Hello World</span>
    </p>
  </div>
)
const root = createRoot(document.getElementById('root'))
root.render(comp)

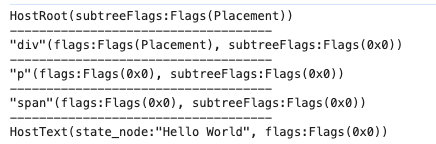

可以看到如下结果：

You can see the following results:

Render 流程到这里暂时告一段落了，后续加入其它功能会再修改这里的内容。下一篇文章我们来实现 Commit 流程。

The rendering process concludes here for now, and the content will be modified when other functionalities are added. In the next article, we will implement the commit process.
