Server-Sent Events (SSE) 技术解析与实战

为什么要学习 SSE?

随着 AI 技术的爆发式发展,SSE 在以下场景中变得尤为重要:

  1. AI 聊天机器人流式回复:ChatGPT、Claude 等 AI 助手通过 SSE 逐字输出回复,提供打字机效果
  2. AI 代码生成:GitHub Copilot 等工具实时生成代码片段
  3. AI 图像生成进度:Stable Diffusion 等工具显示生成进度和中间结果
  4. 实时 AI 分析:股票分析、数据挖掘结果的实时推送

SSE vs WebSocket:如何选择?

特性 SSE WebSocket
通信方向 单向(服务端 → 客户端) 双向
协议 基于 HTTP 独立协议
复杂度 简单 相对复杂
自动重连 内置支持 需要手动实现
防火墙穿透 优秀(HTTP 协议) 可能被阻止
适用场景 实时推送、通知、监控 实时聊天、游戏、协作
浏览器支持 广泛支持 广泛支持

选择建议

  • 选择 SSE:如果只需要服务端推送数据(如 AI 回复、通知、监控)
  • 选择 WebSocket:如果需要双向实时通信(如在线游戏、协作编辑)

SSE 基础原理

什么是 SSE?

Server-Sent Events (SSE) 是 HTML5 标准的一部分,允许服务器主动向客户端推送数据。它基于 HTTP 协议,使用简单的文本格式传输数据。

基本工作流程

1
2
3
4
5
6
7
客户端                    服务端
| |
|-- GET /events -------->| 建立连接
|<-- 200 OK -------------| 返回事件流
|<-- data: message1 -----| 推送消息1
|<-- data: message2 -----| 推送消息2
|<-- ... ---| 持续推送

最简单的 SSE 示例

让我们从一个最基础的例子开始:

服务端代码(Node.js)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
const express = require('express')
const app = express()

app.use(express.static('.'))

app.get('/events', (req, res) => {
// 设置SSE响应头
res.writeHead(200, {
'Content-Type': 'text/event-stream',
'Cache-Control': 'no-cache',
Connection: 'keep-alive',
'Access-Control-Allow-Origin': '*',
})

// 发送初始消息
res.write('data: 连接建立成功\n\n')

// 每隔2秒发送当前时间
const timer = setInterval(() => {
const now = new Date().toLocaleTimeString()
res.write(`data: 当前时间: ${now}\n\n`)
}, 2000)

// 处理连接关闭
req.on('close', () => {
clearInterval(timer)
console.log('客户端断开连接')
})
})

app.listen(3000, () => {
console.log('SSE服务器运行在 http://localhost:3000')
})

客户端代码(HTML + JavaScript)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
<!DOCTYPE html>
<html>
<head>
<title>简单的SSE示例</title>
</head>
<body>
<h1>SSE实时时间显示</h1>
<div id="messages"></div>

<script>
const eventSource = new EventSource('/events')
const messagesDiv = document.getElementById('messages')

eventSource.onmessage = function (event) {
const messageEl = document.createElement('div')
messageEl.textContent = event.data
messagesDiv.appendChild(messageEl)
}

eventSource.onerror = function (event) {
console.error('SSE错误:', event)
}
</script>
</body>
</html>

这个简单的例子展示了 SSE 的核心概念:服务端持续推送数据,客户端实时接收并显示。

SSE 消息格式详解

SSE 使用简单的文本格式传输数据,每个消息由以下字段组成:

基本字段

1
2
field: value
field: value

标准字段说明

1. data - 数据字段

1
2
data: 这是消息内容
data: 可以有多行数据
1
2
3
res.write('data: 这是消息内容\n')
res.write('data: 可以有多行数据\n')
res.write('\n')

2. event - 事件类型

1
2
event: user-login
data: {"userId": 123, "name": "张三"}
1
2
3
res.write('event: user-login\n')
res.write('data: {"userId": 123, "name": "张三"}\n')
res.write('\n')

客户端需要监听 user-login 事件:

1
2
3
eventSource.addEventListener('user-login', function (event) {
console.log('data', event.data)
})

3. id - 事件 ID

1
2
id: 123
data: 带ID的消息
1
2
3
res.write('id: 9527\n')
res.write('data: 带ID的消息\n')
res.write('\n')

4. retry - 重连间隔

1
2
retry: 5000
data: 设置5秒重连间隔

自动重连机制

SSE 的一个重要优势是内置的自动重连功能。当连接断开时,浏览器会自动尝试重新连接。

还是用上面的最简单的 SSE 示例。

  1. 启动服务后打开页面等待一会
  2. 停止服务后等待一会
  3. 重启服务

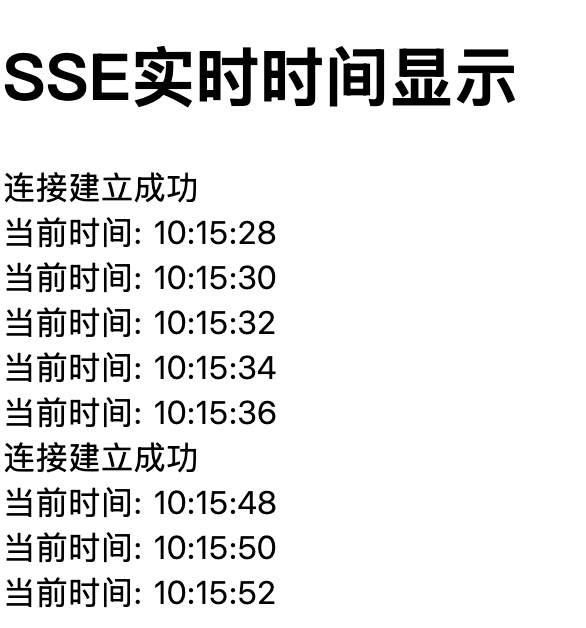

可以看到前端页面结果如下:

数据续传机制

当网络中断时,客户端可能会错过一些重要消息。为了让客户端重新连接时,能够接受到这些消息,需要实现数据续传。

数据续传原理

数据续传的核心机制是通过 Last-Event-ID 来跟踪消息的连续性:

  1. 消息标识:服务端为每条消息分配唯一的递增 ID
  2. ID 存储:客户端将收到的最后一个事件 ID 存储在本地
  3. 重连检测:客户端重连时,通过 Last-Event-ID 告知服务端最后收到的消息 ID
  4. 补发机制:服务端查找历史消息,将错过的消息批量发送给客户端
  5. 状态同步:完成补发后,恢复正常的实时消息流

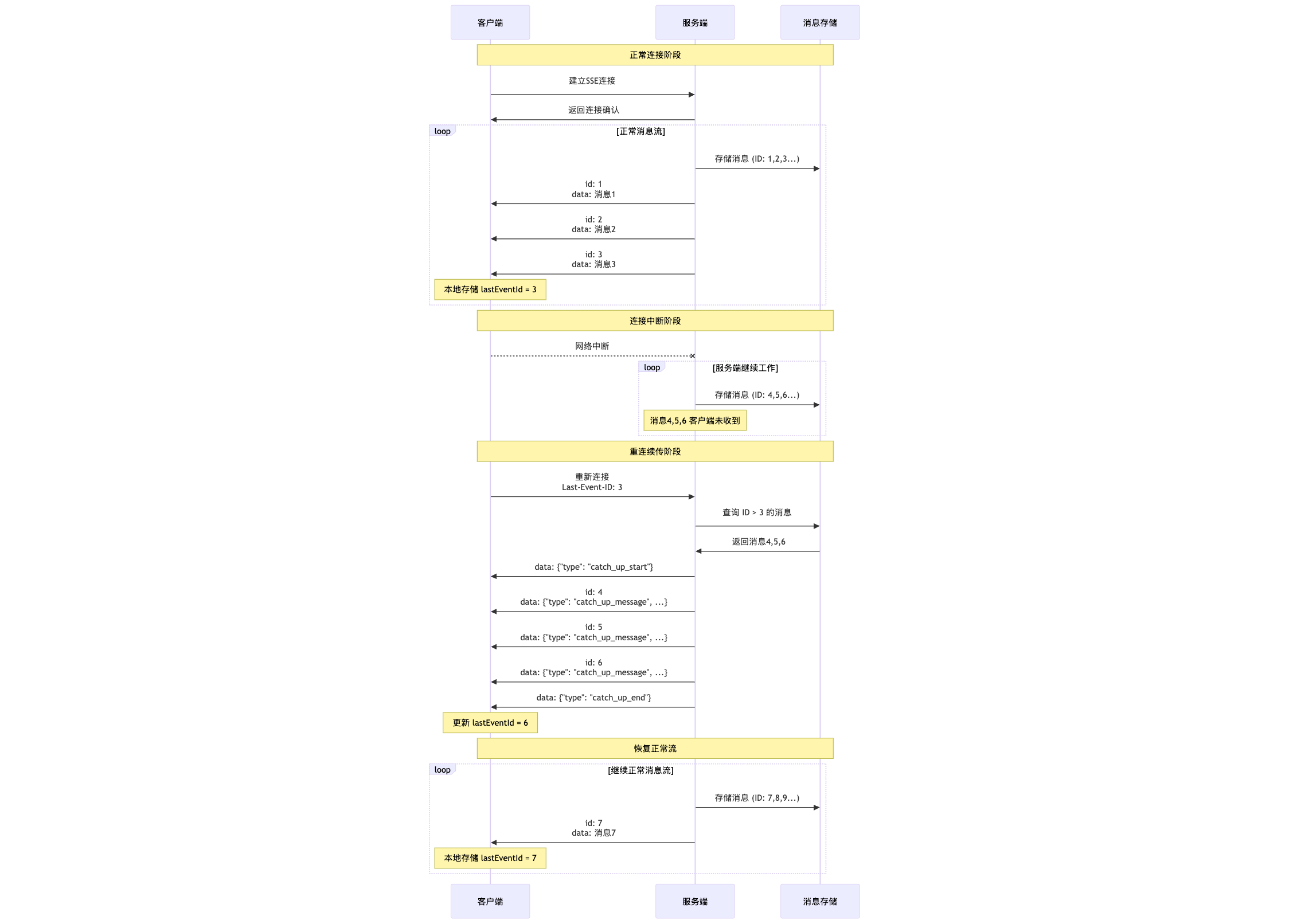

数据续传时序图

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
sequenceDiagram
participant C as 客户端
participant S as 服务端
participant M as 消息存储

Note over C,M: 正常连接阶段
C->>S: 建立SSE连接
S->>C: 返回连接确认

loop 正常消息流
S->>M: 存储消息 (ID: 1,2,3...)
S->>C: id: 1<br/>data: 消息1
S->>C: id: 2<br/>data: 消息2
S->>C: id: 3<br/>data: 消息3
Note over C: 本地存储 lastEventId = 3
end

Note over C,M: 连接中断阶段
C--XS: 网络中断

loop 服务端继续工作
S->>M: 存储消息 (ID: 4,5,6...)
Note over S: 消息4,5,6 客户端未收到
end

Note over C,M: 重连续传阶段
C->>S: 重新连接<br/>Last-Event-ID: 3
S->>M: 查询 ID > 3 的消息
M->>S: 返回消息4,5,6

S->>C: data: {"type": "catch_up_start"}
S->>C: id: 4<br/>data: {"type": "catch_up_message", ...}
S->>C: id: 5<br/>data: {"type": "catch_up_message", ...}
S->>C: id: 6<br/>data: {"type": "catch_up_message", ...}
S->>C: data: {"type": "catch_up_end"}

Note over C: 更新 lastEventId = 6

Note over C,M: 恢复正常流
loop 继续正常消息流
S->>M: 存储消息 (ID: 7,8,9...)
S->>C: id: 7<br/>data: 消息7
Note over C: 本地存储 lastEventId = 7
end

以下是一个例子

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
// 服务端
const express = require('express')
const app = express()

app.use(express.static('.'))

// 消息历史存储
const messageHistory = []
const MAX_HISTORY_SIZE = 1000
let messageId = 0

// 当前连接的客户端(单客户端)
let currentClient = null

// 添加消息到历史记录
function addToHistory(messageData) {
messageHistory.push({
id: messageData.id,
data: messageData,
timestamp: Date.now(),
})

// 保持历史记录大小在限制范围内
if (messageHistory.length > MAX_HISTORY_SIZE) {
messageHistory.shift()
}
}

// 获取指定ID之后的消息
function getMessagesAfter(lastEventId) {
if (!lastEventId) return []

const lastId = parseInt(lastEventId)
if (isNaN(lastId)) return []

return messageHistory.filter((msg) => msg.id > lastId).map((msg) => msg.data)
}

app.get('/events', (req, res) => {
const lastEventId = req.headers['last-event-id'] || req.query.lastEventId
console.log('新连接,Last-Event-ID:', lastEventId)

res.writeHead(200, {
'Content-Type': 'text/event-stream',
'Cache-Control': 'no-cache',
Connection: 'keep-alive',
'Access-Control-Allow-Origin': '*',
'Access-Control-Allow-Headers': 'Last-Event-ID',
})

// 存储当前客户端连接
currentClient = res

// 发送连接确认
res.write(
`data: ${JSON.stringify({
type: 'connected',
message: '连接建立成功',
timestamp: new Date().toISOString(),
})}\n\n`
)

// 如果有Last-Event-ID,发送错过的消息
if (lastEventId) {
const missedMessages = getMessagesAfter(lastEventId)
console.log(`发送 ${missedMessages.length} 条错过的消息`)

if (missedMessages.length > 0) {
// 发送续传开始标记
res.write(
`data: ${JSON.stringify({
type: 'catch_up_start',
message: `开始同步 ${missedMessages.length} 条错过的消息`,
count: missedMessages.length,
})}\n\n`
)

// 批量发送错过的消息
missedMessages.forEach((msg, index) => {
setTimeout(() => {
if (currentClient) {
try {
res.write(
`id: ${msg.id}\ndata: ${JSON.stringify({
...msg,
type: 'catch_up_message',
originalType: msg.type,
})}\n\n`
)
} catch (error) {
console.log('发送续传消息失败:', error.message)
currentClient = null
}
}
}, index * 100) // 每100ms发送一条
})

// 发送续传结束标记
setTimeout(() => {
if (currentClient) {
try {
res.write(
`data: ${JSON.stringify({
type: 'catch_up_end',
message: '消息同步完成',
syncCount: missedMessages.length,
})}\n\n`
)
} catch (error) {
console.log('发送续传结束标记失败:', error.message)
currentClient = null
}
}
}, missedMessages.length * 100 + 200)
}
}

// 处理连接关闭
req.on('close', () => {
console.log('连接关闭')
currentClient = null
})

req.on('error', (error) => {
console.log('连接错误:', error.message)
currentClient = null
})
})

// 模拟定期发送消息
setInterval(() => {
const messageData = {
id: ++messageId,
type: 'message',
message: '当前时间: ' + new Date().toLocaleString(),
timestamp: new Date().toISOString(),
}

// 存储到历史记录
addToHistory(messageData)

// 发送到当前连接的客户端
if (currentClient) {
try {
currentClient.write(
`id: ${messageData.id}\ndata: ${JSON.stringify(messageData)}\n\n`
)
console.log('消息已发送:', messageData.message)
} catch (error) {
console.log('消息发送失败:', error.message)
currentClient = null
}
} else {
console.log('无客户端连接,消息仅存储到历史:', messageData.message)
}
}, 1000)

console.log('SSE服务器启动在 http://localhost:3000')
console.log('访问 http://localhost:3000 查看演示页面')

app.listen(3000)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
<!-- 客户端 -->
<!DOCTYPE html>
<html lang="zh">
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>SSE 重连续传演示</title>
<style>
body {
font-family: Arial, sans-serif;
max-width: 800px;
margin: 0 auto;
padding: 20px;
background-color: #f5f5f5;
}
.header {
background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
color: white;
padding: 20px;
border-radius: 10px;
margin-bottom: 20px;
text-align: center;
}
.controls {
background: white;
padding: 20px;
border-radius: 10px;
margin-bottom: 20px;
box-shadow: 0 2px 4px rgba(0, 0, 0, 0.1);
}
.status-panel {
display: grid;
grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
gap: 15px;
margin-bottom: 20px;
}
.status-card {
background: white;
padding: 15px;
border-radius: 8px;
box-shadow: 0 2px 4px rgba(0, 0, 0, 0.1);
text-align: center;
}
.status-value {
font-size: 24px;
font-weight: bold;
margin: 10px 0;
}
.status-connected {
color: #28a745;
}
.status-disconnected {
color: #dc3545;
}
.status-catching-up {
color: #ffc107;
}
.btn {
padding: 10px 20px;
border: none;
border-radius: 5px;
cursor: pointer;
font-size: 14px;
margin: 5px;
transition: background-color 0.3s;
}
.btn-primary {
background-color: #007bff;
color: white;
}
.btn-primary:hover {
background-color: #0056b3;
}
.btn-danger {
background-color: #dc3545;
color: white;
}
.btn-danger:hover {
background-color: #c82333;
}
.btn-success {
background-color: #28a745;
color: white;
}
.btn-success:hover {
background-color: #218838;
}
.btn-warning {
background-color: #ffc107;
color: #212529;
}
.btn-warning:hover {
background-color: #e0a800;
}
.btn:disabled {
opacity: 0.6;
cursor: not-allowed;
}
.messages-container {
background: white;
border-radius: 10px;
max-height: 400px;
overflow-y: auto;
box-shadow: 0 2px 4px rgba(0, 0, 0, 0.1);
}
.messages-header {
padding: 15px;
border-bottom: 1px solid #eee;
font-weight: bold;
position: sticky;
top: 0;
background: white;
}
#messages {
padding: 15px;
}
.message {
padding: 8px 12px;
margin: 5px 0;
border-radius: 5px;
border-left: 4px solid;
}
.new-message {
background-color: #e8f5e8;
border-left-color: #28a745;
}
.catch-up-message {
background-color: #fff3cd;
border-left-color: #ffc107;
}
.system-message {
background-color: #d1ecf1;
border-left-color: #17a2b8;
}
.timestamp {
font-size: 12px;
color: #666;
margin-right: 10px;
}
.content {
font-weight: 500;
}
</style>
</head>
<body>

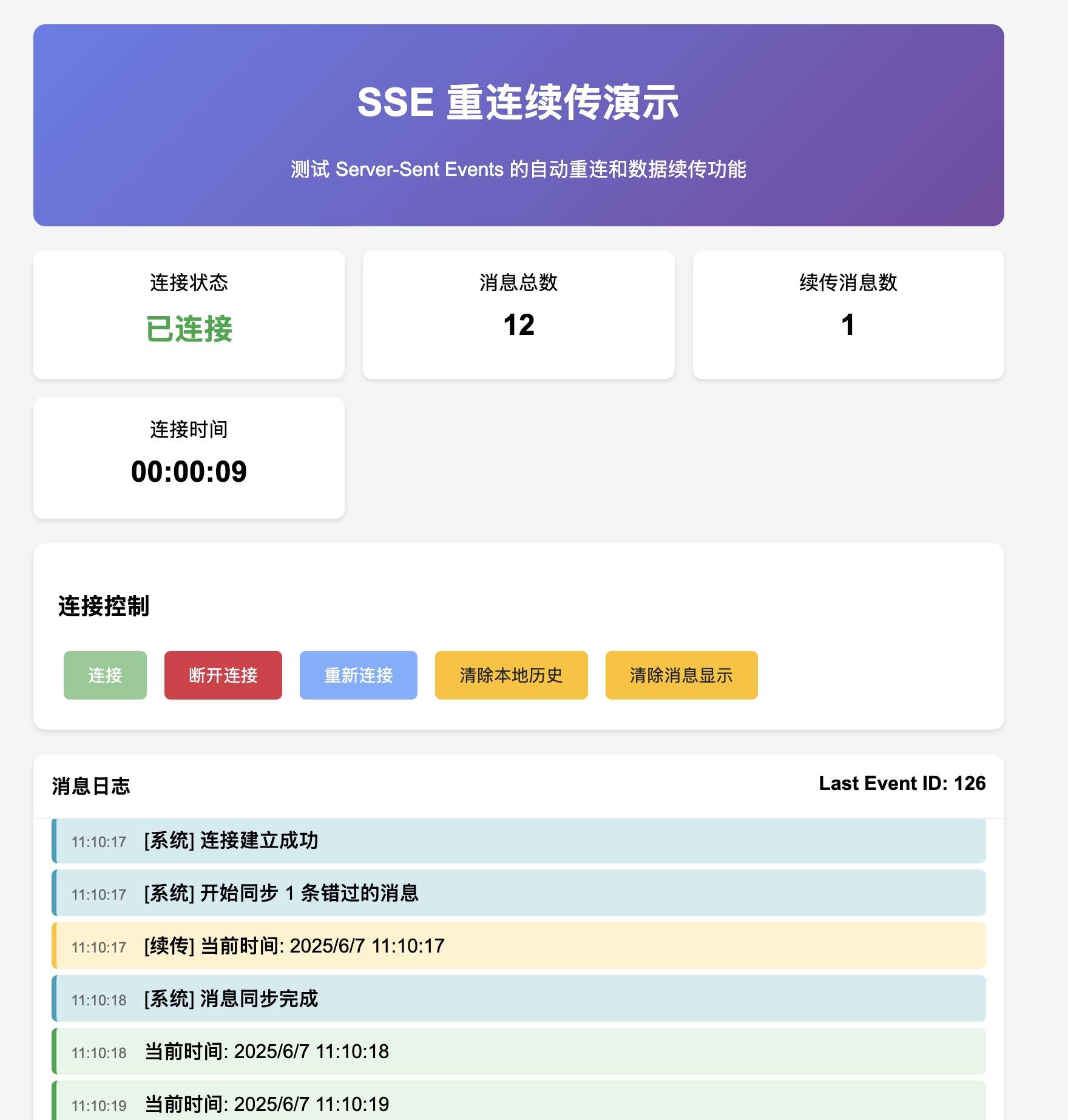

<div class="header">
<h1>SSE 重连续传演示</h1>
<p>测试 Server-Sent Events 的自动重连和数据续传功能</p>
</div>

<div class="status-panel">
<div class="status-card">
<div>连接状态</div>
<div class="status-value" id="connection-status">未连接</div>
</div>
<div class="status-card">
<div>消息总数</div>
<div class="status-value" id="message-count">0</div>
</div>
<div class="status-card">
<div>续传消息数</div>
<div class="status-value" id="catchup-count">0</div>
</div>
<div class="status-card">
<div>连接时间</div>
<div class="status-value" id="connection-time">--:--:--</div>
</div>
</div>

<div class="controls">
<h3>连接控制</h3>
<button id="connect-btn" class="btn btn-success">连接</button>
<button id="disconnect-btn" class="btn btn-danger" disabled>
断开连接
</button>
<button id="reconnect-btn" class="btn btn-primary" disabled>
重新连接
</button>
<button id="clear-history-btn" class="btn btn-warning">
清除本地历史
</button>
<button id="clear-messages-btn" class="btn btn-warning">
清除消息显示
</button>
</div>

<div class="messages-container">
<div class="messages-header">
<span>消息日志</span>
<span style="float: right;" id="last-event-id">Last Event ID: --</span>
</div>
<div id="messages"></div>
</div>

<script>
class SSEClientWithCatchUp {
constructor(url) {
this.url = url
this.lastEventId = localStorage.getItem('sse_last_event_id')
this.isCatchingUp = false
this.eventSource = null
this.messageCount = 0
this.catchupCount = 0
this.connectionStartTime = null
this.connectionTimer = null

this.updateUI()
}

connect() {
if (this.eventSource) {
this.eventSource.close()
}

const url = this.lastEventId
? `${this.url}?lastEventId=${this.lastEventId}`
: this.url

console.log('正在连接...', {url, lastEventId: this.lastEventId})

this.eventSource = new EventSource(url)
this.connectionStartTime = Date.now()
this.startConnectionTimer()

this.eventSource.onopen = () => {
console.log('✅ SSE 连接已建立')
this.updateConnectionStatus('已连接', 'connected')
this.updateButtons(true)
}

this.eventSource.onmessage = (event) => {
// 保存最新的事件ID
if (event.lastEventId) {
this.lastEventId = event.lastEventId
localStorage.setItem('sse_last_event_id', this.lastEventId)
document.getElementById(
'last-event-id'
).textContent = `Last Event ID: ${this.lastEventId}`
}

const data = JSON.parse(event.data)
this.handleMessage(data)
}

this.eventSource.onerror = () => {
console.log('❌ 连接错误')
this.updateConnectionStatus('连接错误', 'disconnected')
this.updateButtons(false)
this.stopConnectionTimer()
}
}

disconnect() {
if (this.eventSource) {
console.log('🔌 手动断开连接')
this.eventSource.close()
this.eventSource = null
}
this.updateConnectionStatus('已断开', 'disconnected')
this.updateButtons(false)
this.stopConnectionTimer()
}

reconnect() {
console.log('🔄 重新连接中...')
this.updateConnectionStatus('重连中...', 'catching-up')
this.connect()
}

clearHistory() {
localStorage.removeItem('sse_last_event_id')
this.lastEventId = null
document.getElementById('last-event-id').textContent =
'Last Event ID: --'
console.log('🗑️ 已清除本地历史记录')
this.displaySystemMessage(
'已清除本地 Last Event ID,下次连接将从头开始接收消息'
)
}

clearMessages() {
document.getElementById('messages').innerHTML = ''
this.messageCount = 0
this.catchupCount = 0
this.updateCounters()
console.log('🗑️ 已清除消息显示')
}

handleMessage(data) {
switch (data.type) {
case 'connected':
console.log('✅ 连接确认:', data.message)
this.displaySystemMessage(data.message)
break
case 'catch_up_start':
this.isCatchingUp = true
this.updateConnectionStatus('数据续传中...', 'catching-up')
console.log('🔄 开始数据续传:', data.message)
this.displaySystemMessage(data.message)
break
case 'catch_up_message':
console.log('📦 续传消息:', data.message)
this.displayMessage(data, true)
this.catchupCount++
break
case 'catch_up_end':
this.isCatchingUp = false
this.updateConnectionStatus('已连接', 'connected')
console.log('✅ 数据续传完成:', data.message)
this.displaySystemMessage(data.message)
break
case 'message':
console.log('📨 新消息:', data.message)
this.displayMessage(data, false)
break
case 'heartbeat':
console.log('💓 心跳:', data.timestamp)
break
}
this.updateCounters()
}

displayMessage(data, isCatchUp) {
const messageEl = document.createElement('div')
messageEl.className = `message ${
isCatchUp ? 'catch-up-message' : 'new-message'
}`
messageEl.innerHTML = `
<span class="timestamp">${new Date(
data.timestamp
).toLocaleTimeString()}</span>
<span class="content">${isCatchUp ? '[续传] ' : ''}${data.message}</span>
`
document.getElementById('messages').appendChild(messageEl)
// messageEl.scrollIntoView({ behavior: 'smooth' })

if (!isCatchUp) {
this.messageCount++
}
}

displaySystemMessage(message) {
const messageEl = document.createElement('div')
messageEl.className = 'message system-message'
messageEl.innerHTML = `
<span class="timestamp">${new Date().toLocaleTimeString()}</span>
<span class="content">[系统] ${message}</span>
`
document.getElementById('messages').appendChild(messageEl)
// messageEl.scrollIntoView({ behavior: 'smooth' })
}

updateConnectionStatus(status, className) {
const statusEl = document.getElementById('connection-status')
statusEl.textContent = status
statusEl.className = `status-value status-${className}`
}

updateButtons(connected) {
document.getElementById('connect-btn').disabled = connected
document.getElementById('disconnect-btn').disabled = !connected
document.getElementById('reconnect-btn').disabled = connected
}

updateCounters() {
document.getElementById('message-count').textContent =
this.messageCount
document.getElementById('catchup-count').textContent =
this.catchupCount
}

startConnectionTimer() {
this.connectionTimer = setInterval(() => {
if (this.connectionStartTime) {
const elapsed = Date.now() - this.connectionStartTime
const time = new Date(elapsed).toISOString().substr(11, 8)
document.getElementById('connection-time').textContent = time
}
}, 1000)
}

stopConnectionTimer() {
if (this.connectionTimer) {
clearInterval(this.connectionTimer)
this.connectionTimer = null
}
document.getElementById('connection-time').textContent = '--:--:--'
}

updateUI() {
this.updateConnectionStatus('未连接', 'disconnected')
this.updateButtons(false)
this.updateCounters()
document.getElementById(
'last-event-id'
).textContent = `Last Event ID: ${this.lastEventId || '--'}`
}
}

// 初始化客户端
const client = new SSEClientWithCatchUp('/events')

// 绑定按钮事件
document.getElementById('connect-btn').addEventListener('click', () => {
client.connect()
})

document
.getElementById('disconnect-btn')
.addEventListener('click', () => {
client.disconnect()
})

document.getElementById('reconnect-btn').addEventListener('click', () => {
client.reconnect()
})

document
.getElementById('clear-history-btn')
.addEventListener('click', () => {
if (
confirm(
'确定要清除本地历史记录吗?这将导致下次连接时重新接收所有消息。'
)
) {
client.clearHistory()
}
})

document
.getElementById('clear-messages-btn')
.addEventListener('click', () => {
client.clearMessages()
})

// 页面加载完成后自动连接
window.addEventListener('load', () => {
setTimeout(() => {
client.connect()
}, 1000)
})
</script>
</body>
</html>

总结

Server-Sent Events (SSE) 是基于 HTTP 的服务端推送技术,特别适合 AI 聊天、实时通知等单向数据流场景。本文介绍了 SSE 的基本数据格式,断线重连及数据续传功能。
