从零实现 React v18，但 WASM 版 - [12] 实现多节点更新流程

模仿 big-react，使用 Rust 和 WebAssembly，从零实现 React v18 的核心功能。深入理解 React 源码的同时，还锻炼了 Rust 的技能，简直赢麻了！

代码地址：https://github.com/ParadeTo/big-react-wasm

本文对应 tag：v12

Based on big-react，I am going to implement React v18 core features from scratch using WASM and Rust.

Code Repository：https://github.com/ParadeTo/big-react-wasm

The tag related to this article：v12

之前已经实现了单节点的更新流程，这篇文章继续介绍如何实现多节点的更新。

首先，还是来看 begin work 阶段，这里的实现方式跟官方的类似，可以看之前写的这篇文章多节点 Diff 的章节，主要区别在于去掉了第一轮遍历的过程。

值得注意的是这里，TS 中可以像这样声明一个 Map 的类型:

We have previously implemented the update process for a single node. This article continues to introduce how to implement updates for multiple nodes.

First, let’s look at the begin work stage. The implementation here is similar to the official one. You can refer to the section on multi-node Diff in the previous article. The main difference is that the first round of traversal process has been removed.

It’s worth noting that in TypeScript, you can declare a Map type like this:

1	Map<string \| number, Fiber>

但是 WASM 中的 key 是 JsValue 类型的，当我们尝试这样声明类型时，会提示 JsValue 没有实现 Hash 和 Eq trait：

However, the key in WASM is of JsValue type. When we try to declare the type like this, it will prompt that JsValue has not implemented Hash and Eq traits:

1	HashMap<JsValue, Rc<RefCell<FiberNode>>>

那实现一下不就行了？由于 Rust 中的“孤儿规则”限制，我们不能直接给 JsValue 实现这些 trait，需要新建一个 struct 包裹一下：

So, why not just implement it? Due to the “orphan rule” restriction in Rust, we cannot directly implement these traits for JsValue. We need to create a new struct to wrap it:

struct Key(JsValue);

impl PartialEq for Key {
    fn eq(&self, other: &Self) -> bool {
        Object::is(&self.0, &other.0)
    }
}

impl Eq for Key {}

impl Hash for Key {
    fn hash<H: Hasher>(&self, state: &mut H) {
        if self.0.is_string() {
            self.0.as_string().unwrap().hash(state)
        } else if let Some(n) = self.0.as_f64() {
            n.to_bits().hash(state)
        } else if self.0.is_null() {
            "null".hash(state)
        }
    }
}

多节点 Diff 完成后，会给需要移动的 FiberNode 打上 Placement 的标记，给需要删除的 FiberNode 的父节点打上 ChildDeletion 的标记，以下面这个为例：

After the multi-node Diff is completed, the FiberNode that needs to be moved will be marked with Placement, and the parent node of the FiberNode that needs to be deleted will be marked with ChildDeletion. Take the following as an example:

// before
<ul>
  <li key={1}>a</li> // key: "1"
  <li>b</li> // key: 1
  <li>c</li> // key: 2
  <li key={4}>d</li> // key: "4"
</ul>

// after
<ul>
  <li>b</li> // key: 0
  <li>c</li> // key: 1
  <li key={1}>d</li> // key: "1"
</ul>

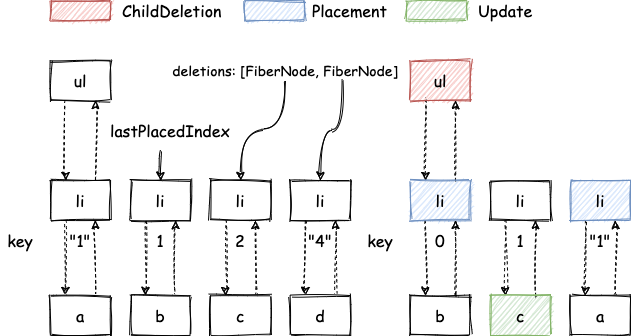

begin work 和 complete work 后的结果如下所示：

The results after begin work and complete work are shown below:

稍微解释下：

传入的 key 都会转为 string 类型，如果没有传 key，则用索引作为 key。
key 为 0 的 li 节点找不到相同 key 的节点，所以需要插入一个新节点，标记为 Placement。
key 为 1 的 li 节点可复用，只需要更新其子节点内容由 b 到 c，标记为 Update。
key 为 “1” 的 li 节点可复用，但由于 oldIndex 小于 lastPlacedIndex，所以需要移动，标记为 Placement。

To briefly explain:

The input keys are all converted to string types. If no key is passed, the index is used as the key.
The li node with key 0 cannot find a node with the same key, so a new node needs to be inserted, marked as Placement.
The li node with key 1 can be reused, only need to update its child node content from b to c, marked as Update.
The li node with key “1” can be reused, but since oldIndex is less than lastPlacedIndex, it needs to be moved, marked as Placement.

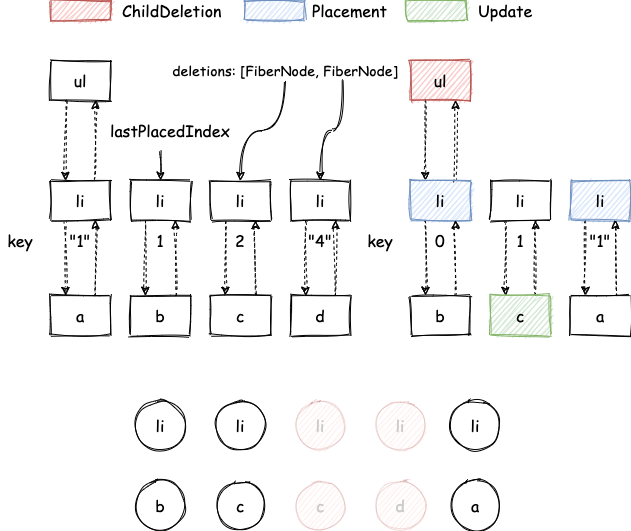

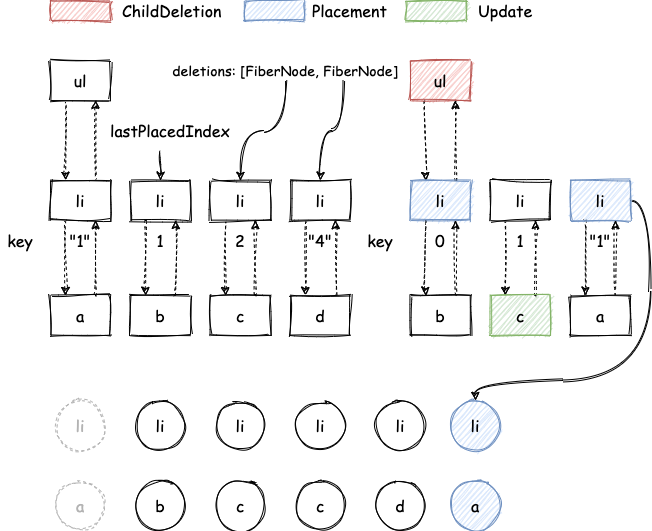

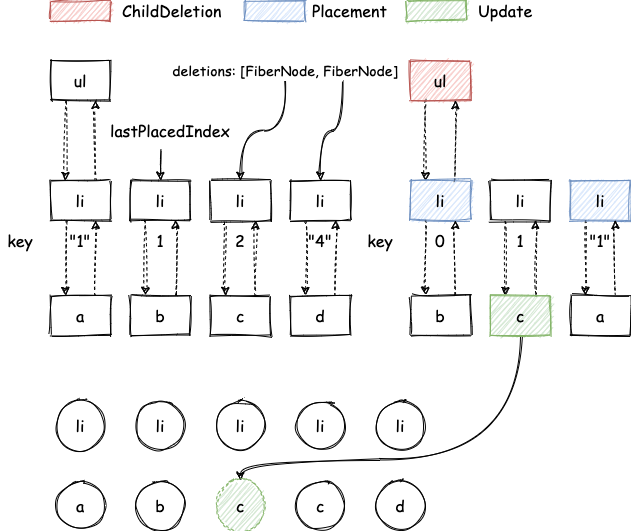

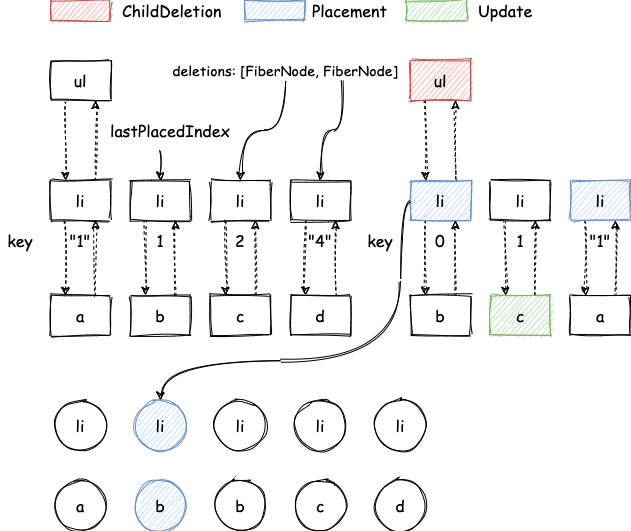

接下来，就到了 commit 阶段，该阶段会按照深度优先遍历的方式处理节点上的副作用。

Next, we come to the commit phase, which processes the side effects on the nodes in a depth-first traversal manner.

在执行插入操作时，会在 siblings 中尝试找到一个插入点 before。难点在于这个插入点可能并不是他的同级 sibling。比如 <div/><B/> 其中 B 是 FunctionComponent 类型： function B() {return <div/>}，这里 before 实际是 B 的 child，实际情况层级可能更深。同时，如果一个 FiberNode 被标记 Placement，那他就是不稳定的（他对应的 Element 在本次 commit 阶段会移动），也不能作为 before。

When executing the insertion operation, it will try to find an insertion point before in siblings. The difficulty is that this insertion point may not be its sibling at the same level. For example, <div/><B/> where B is a FunctionComponent type: function B() {return <div/>}, here before is actually B’s child, and the actual level may be deeper. At the same time, if a FiberNode is marked Placement, then it is unstable (its corresponding Element will move in this commit phase), and it cannot be used as before.
